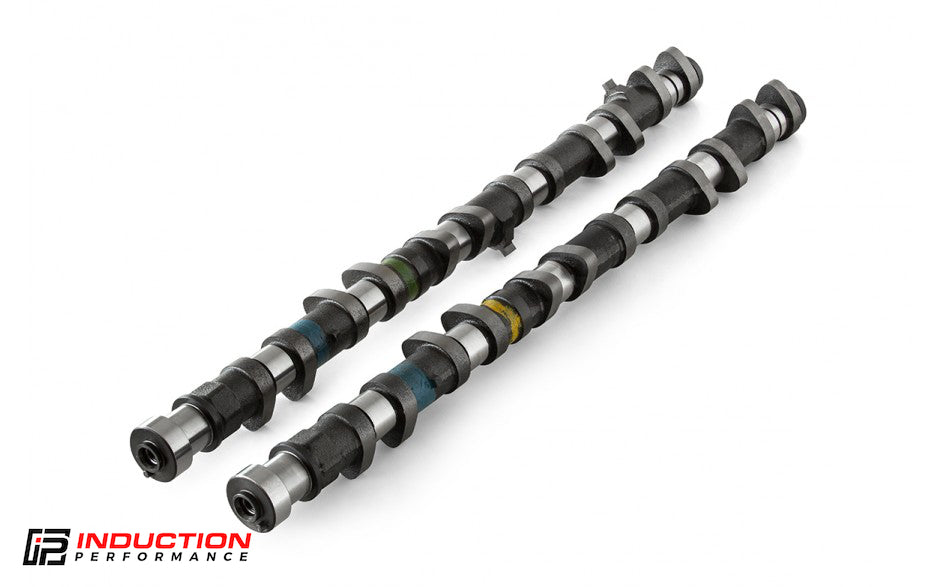

Kelford T202-F Camshafts Set for Toyota Supra 2JZ 2JZGTE
€884,95
Description
Kelford T202-F Camshafts Set for Toyota Supra 2JZ 2JZGTE
282 / 286 Degrees Advertised Duration.
11.00mm / 11.00mm Lift.
To suit Toyota Supra / 2JZ TURBO.
282 / 286 Degrees Advertised Duration.
11.00mm / 11.00mm Lift.
To suit Toyota Supra / 2JZ TURBO.
Additional Information
282/286 Degree racing cams to suit engines running an E85 blend. These cams require shimless bucket or shim-under-bucket conversion.
| Engine Make: | Engine Model: | Part Number: | |||||
| TOYOTA | Supra / 2JZ TURBO | T202-F | |||||
| Valve Clearance: | Intake: | 0.25mm | Set | COLD | at the | CAM | |
| Exhaust: | 0.25mm | Set | COLD | at the | CAM | ||
| Cam Lift: | Intake: | 11.25mm | Exhaust: | 11.25mm | |||
| Rocker Ratio: | Intake: | 1 | Exhaust: | 1 | |||
| Nett Valve Lift: | Intake: | 11.00mm | Exhaust: | 11.00mm | |||
| Advertised Duration @ | 0.10mm | Intake: | 282 | Exhaust: | 286 | ||
| Duration @ | 1.00mm VALVE LIFT | Intake: | 244 | Exhaust: | 248 | ||
| Timing @ | 1.00mm VALVE LIFT | IVO: | 10 BTDC | EVO: | 64 BBDC | ||
| IVC: | 54 ABDC | EVC: | 4 ATDC | ||||
| Suggested Centre Lines: | Intake: | 112 | Exhaust: | 120 | |||
| VALVE | Lift @ TDC | Intake: | 2.36mm | Exhaust: | 1.40 | ||
