Kelford T202-A Camshafts Set for Toyota Supra 2JZ 2JZGTE
Click to enlargeClick to enlarge

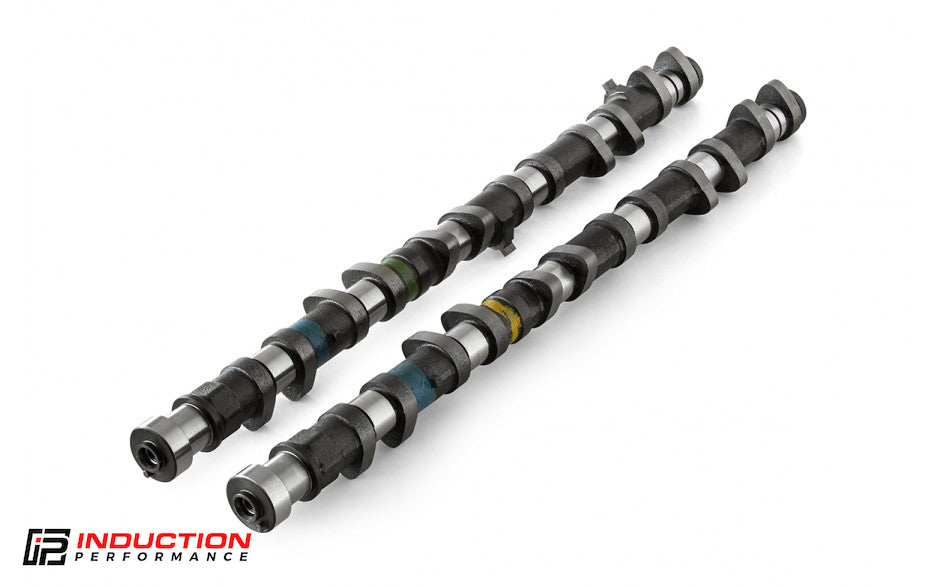

Kelford T202-A Camshafts Set for Toyota Supra 2JZ 2JZGTE

€884,95

SKU: T202-A
Description

Kelford T202-A Camshafts Set for Toyota Supra 2JZ 2JZGTE

248 / 248 Degrees Advertised Duration.

8.70mm / 8.70mm Lift.

To suit Toyota Supra / 2JZ Turbo.

Additional Information

High performance street cams for a near stock engine. Suits up to 30 lb boost and 7500 RPM with our recommended valve spring. Will also drop in on stock spring.

Engine Make: Engine Model: Part Number:
TOYOTA Supra / 2JZ TURBO T202-A
Valve Clearance: Intake: 0.25mm Set COLD at the CAM
  Exhaust: 0.25mm Set COLD at the CAM

Cam Lift:   Intake: 8.95mm Exhaust: 8.95mm
Rocker Ratio:   Intake: 1 Exhaust: 1
Nett Valve Lift:   Intake: 8.70mm Exhaust: 8.70mm
Advertised Duration @ 0.10mm Intake: 248 Exhaust: 248
Duration @ 1.00mm VALVE LIFT Intake: 210 Exhaust: 210
Timing @ 1.00mm VALVE LIFT IVO: 4 ATDC EVO: 41 BBDC
    IVC: 34 ABDC EVC: 11 BTDC
Suggested Centre Lines:   Intake: 109 Exhaust: 116
VALVE Lift @ TDC Intake: 0.68mm Exhaust: 0.06mm
