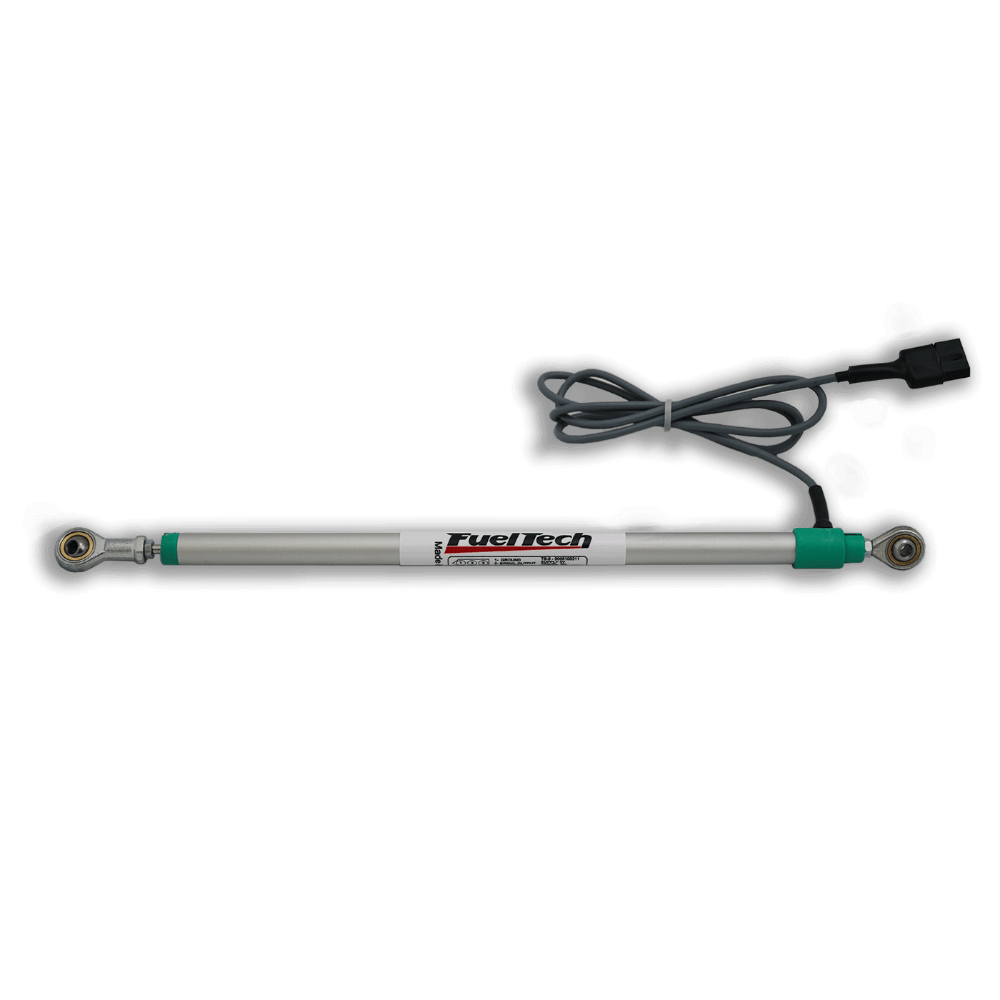

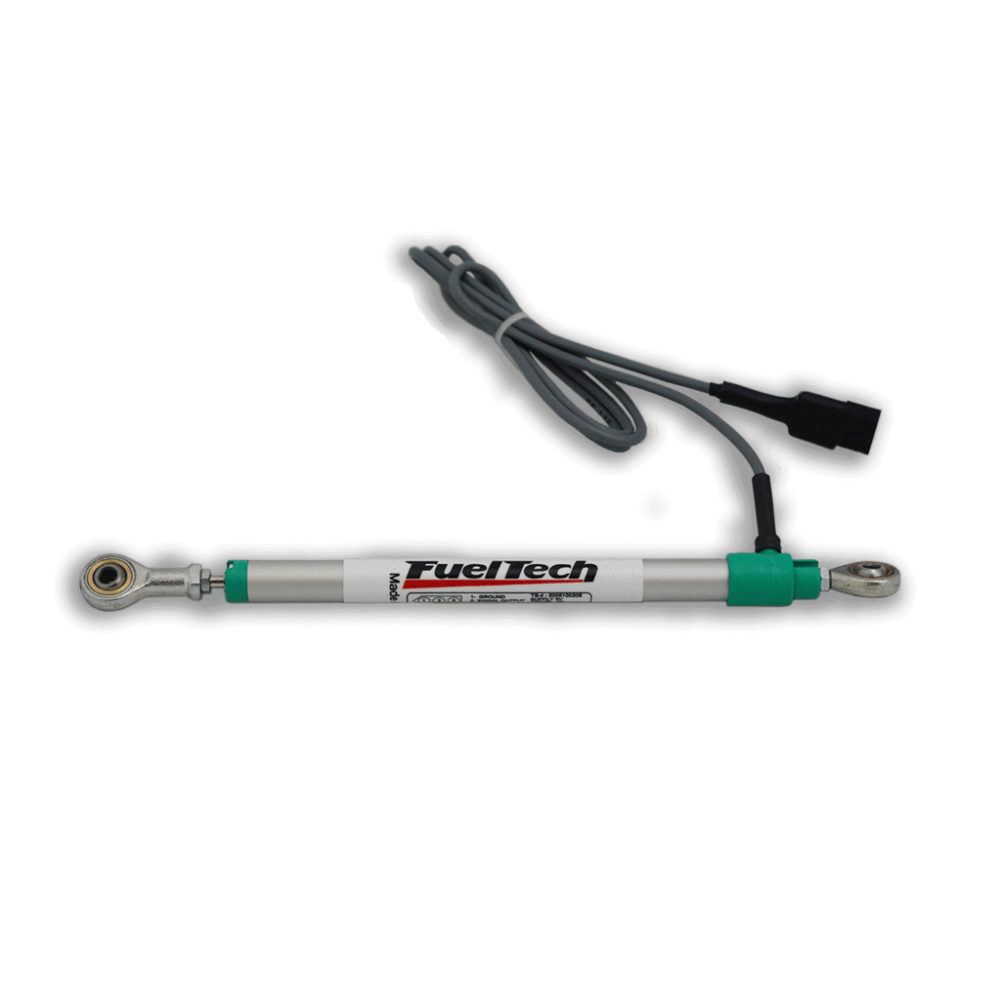

Travel Sensor
Travel Sensor
Travel Sensor
Click to enlargeClick to enlarge

Travel Sensor

$329.00 – $335.00

0-4"
0-8"
w/ mating plug kit
w/o mating plug kit
$335.00
SKU: 5005100209 / 5011100155
Description

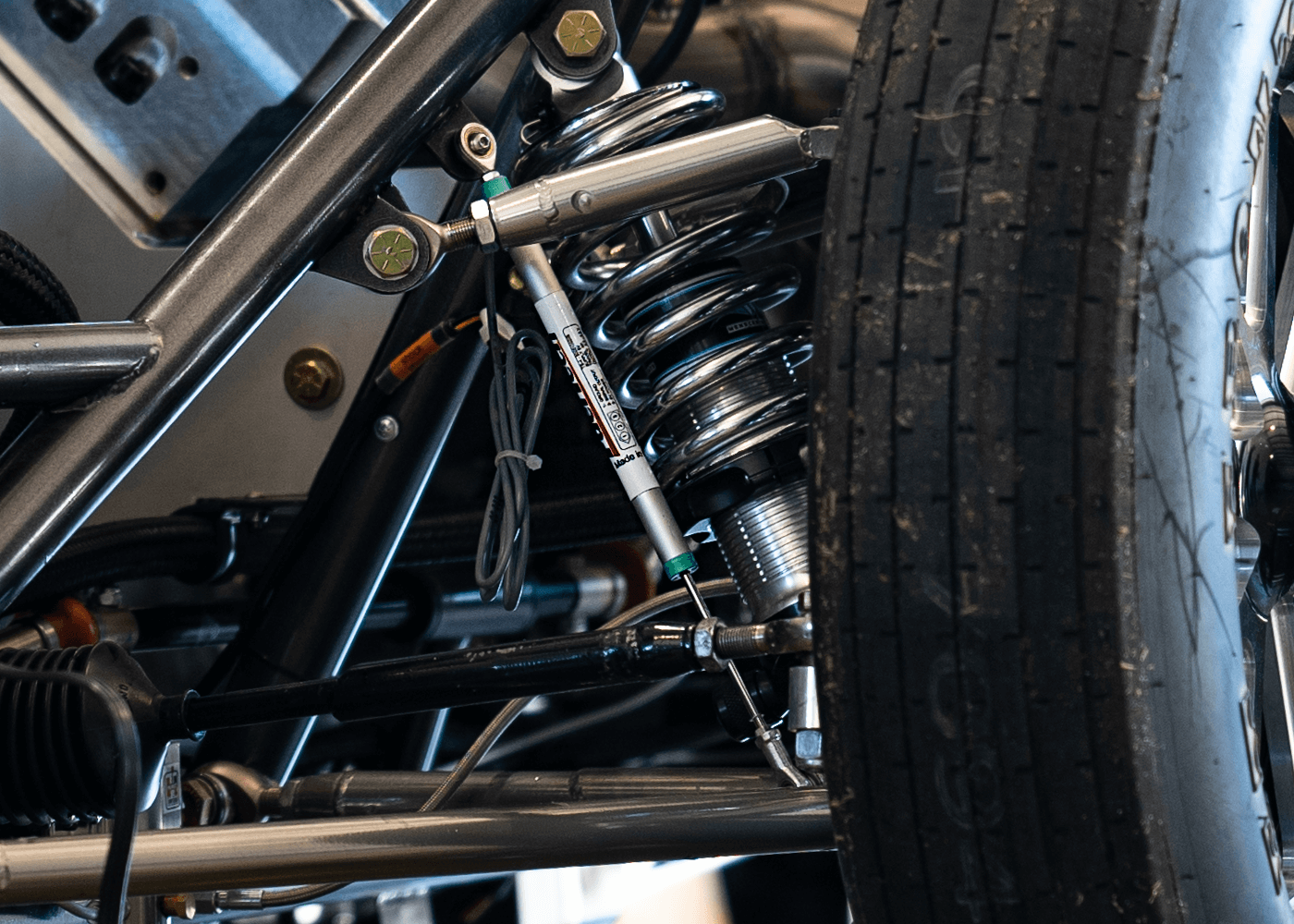

The best way of monitoring your vehicle`s suspension and body movements. Available travel lengths: 0-4", 0-8".

Can be used with any FuelTech Power FT ECU.

Technical Description

4" Travel Sensor:
  • Total Travel: 4"
  • Length Closed: 9"
  • Length Extended: 13"
  • Mounting: 5mm Heim joints
  • Cable Length: 41"
8" Travel Sensor:
  • Total Travel: 8"
  • Length Closed: 13"
  • Length Extended: 21"
  • Mounting: 5mm Heim joints
  • Cable Length: 41"
Voltage/Output:
  • Supply voltage: 5V
  • Signal Output: 0.5V - 4.5V
Connector Pinout:
  • Pin 1 - Ground (Brown)
  • Pin 2 - Signal (Yellow)
  • Pin 3 - 5V (Blue)
