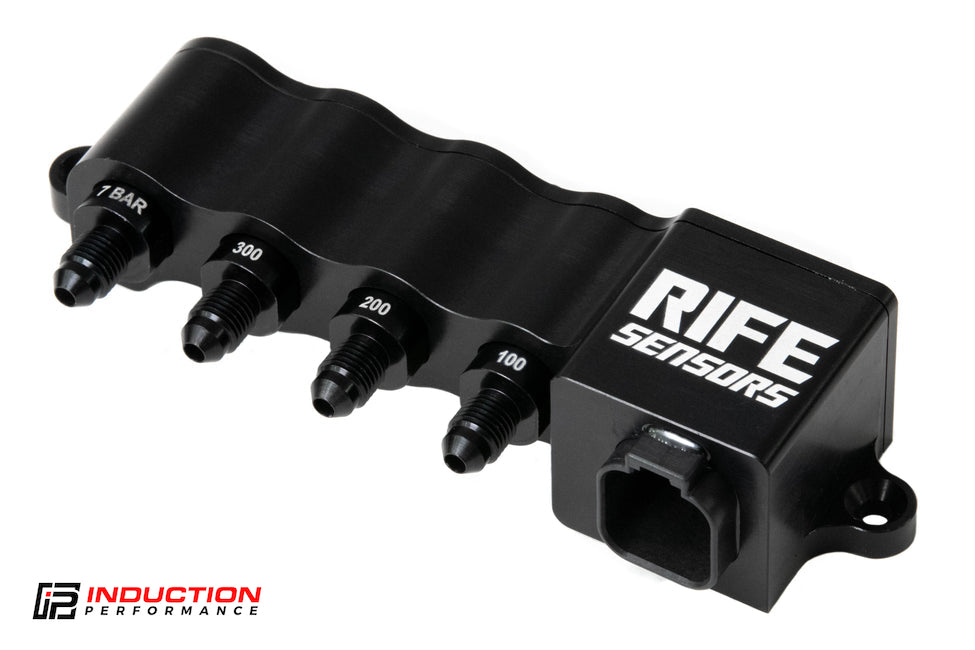

RIFE Quad Sensor Block (Custom Config)

RIFE Quad Sensor Block (Custom Config)

Part # RIFE-4PC

NOTE: Build TIME MAY BE 1-2 weeks for custom config blocks.

NOTE: Please put in notes section of order your 4 sensor choices.  Notes should include a list with what sensor and 3AN male or 1/8" NPT for each. We cannot fulfill your order til we have this info.

• Vibration isolated sensors
• -3 AN or 1/8 NPT connections
• Automotive Grade Deutsch DT connectors
• Sealed to IP69
• Billet aluminum construction
• Available in 1, 2, 3, or 4 sensor packages
• Custom configurations available
• Snubbers available to reduce damaging pressure spikes*
• Industry standard 0-5V output
• Compatible with all ECU’s/data loggers**
• Reduced wiring clutter
• Higher accuracy
• Faster response
• Flexible mounting options
• All wetted parts are 316 stainless, Viton or anodized aluminum
• Available sensor ranges
• 1 Bar, 2 bar, 3 Bar, 4 Bar, 5 Bar, 7 Bar, 10 Bar MAP sensors
• 60psi, 100psi, 150psi, 200psi, 300psi, 500psi, 1600psi

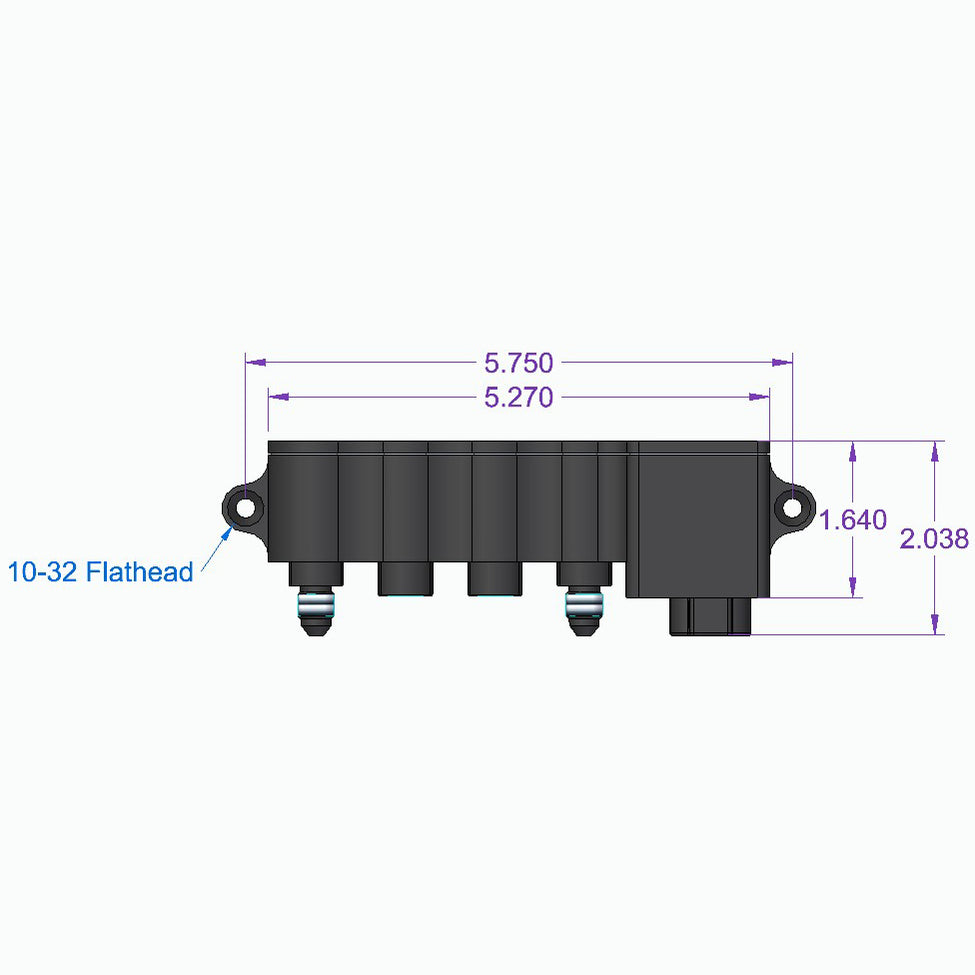

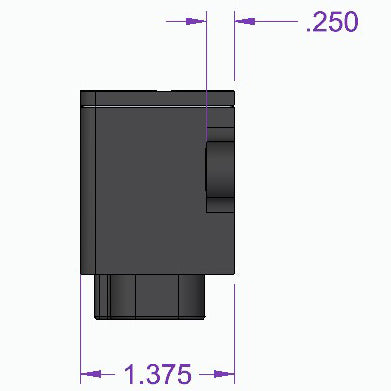

For wiring/sensor orientation see below image

For Data and Scaling Info : Click Here

Watch this video on the internals and the unique features of this sensor solution!
