BT Innovations // BTI Gauges 3.5 TFT Gauge for ProEFI

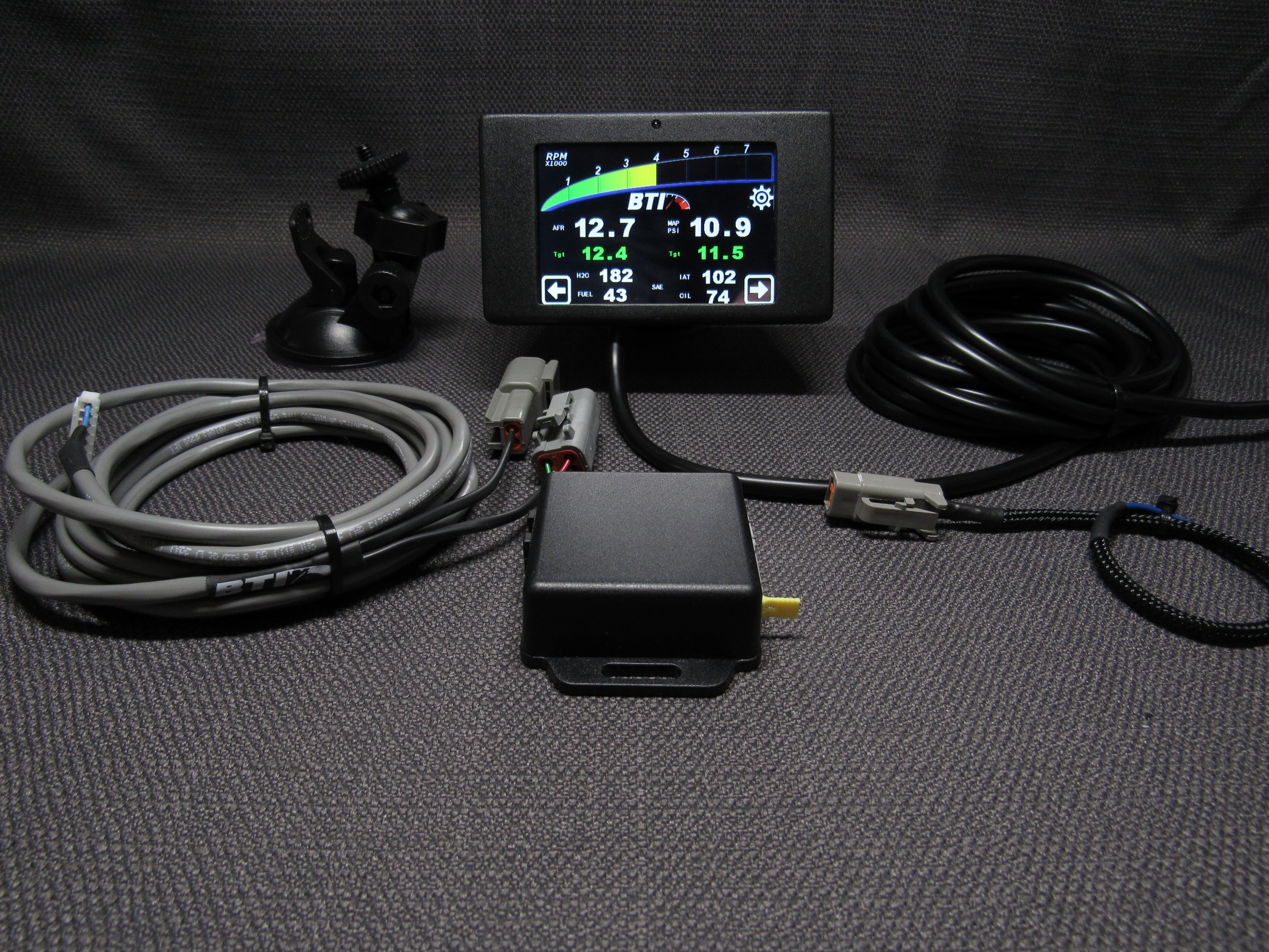

BTI 3.5" TFT Gauge with ProEFI Integration

Introducing the second generation BTI touchscreen display. We have received many requests for a larger screen for the MKIV Supra stock clock location as well as a larger windshield mount unit and this is our solution. The new larger display with an anti-glare coating now has a boost in processing power and memory allowing for all compatible integrations to be loaded into this single device. Just select your compatible ECU and baud rate. As with the previous generation, there are two 0-5 volt analog outputs and CAN transmit functionality as well. This means that this gauge is capable of adjusting boost settings, traction settings, and much more. Of course there is the standard shift light that may be programmable by gear and next to that is an auto dimming sensor that keeps the display at the correct brightness.

Mounting options: The Supra displays include a mount that uses the factory screws and mounting location that the factory digital clock uses. The Universal mount has 3 threaded mounting points and includes a universal mounting bracket. The HD windshield mount model includes a heavy duty suction mount.

Link: Buying For Your MK4 S2 Supra

TPMS: This display is capable of reading TPMS over CAN and is compatible with our own TPMS-CAN system. Our TPMS-CAN system is capable of either 500kb/s or 1MB/s baud rates which will work with any aftermarket ECU that we support. We also currently support data from the Haltech TMS4 TPMS CAN system which is only capable of a 1MB/s baud rate.

Link: BTI TPMS systems
