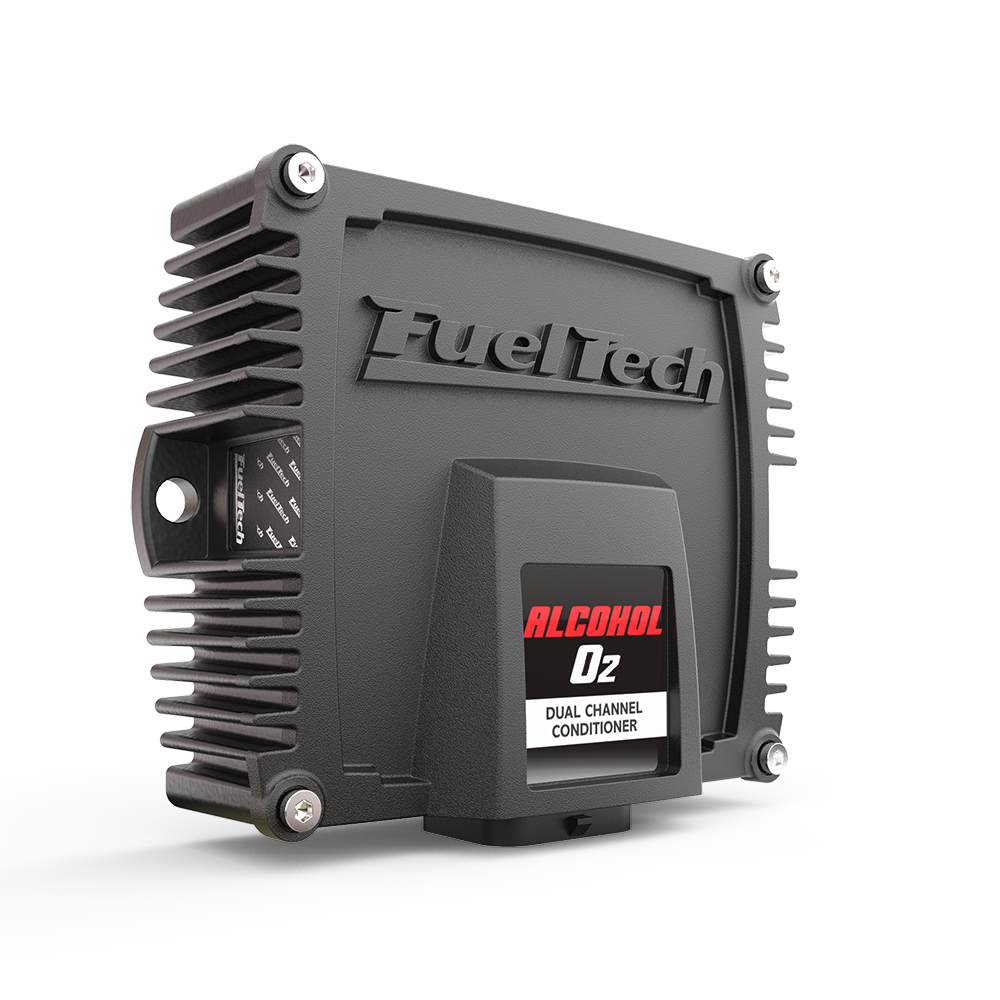

Alcohol O2 - Dual Channel Lab Grade O2 Conditioner

• Description
• Downloads

• For use with the lab grade NTK sensors. If you do not have that specific sensor then check out our WB-O2 Nano.

  CAN communication with all power FT series ECUs.

  Features 0-5v analog outputs for connection with FT600/FT550/FT500/FT450 and other data acuistion equipment.

  NTK sensor requires free air calibration for proper reading.

•  Alcohol O2 - Dual Channel Manual

Technical Description

• High precision and speed equipment for NTK O2 sensor conditioner
• Extremely rich air/fuel ratio readings: from 0.28 Lambda (1.80 AFR Alcohol)
• Free air calibration required by the sensor
• Uses a special O2 sensor from NTK laboratories
• CAN communication with FT600 / FT550 / FT500 / FT500LITE / FT450
• Analog outputs for connection with FT600 / FT550 / FT500 / FT500LITE / FT450, PRO24 or other data acquisition equipment

Contents of Packaging

• 1 Alcohol O2 - Dual Channel
• 1 Operation and installation guide
• 1 8ft Alcohol O2 - Dual Channel unterminated harness (optional)
• 1 Mounting kit (4 rubber mounts, 4 washers and 4 ¼” nuts)
• 1 Promotional kit (including a pen and a FuelTech black carbon fiber sticker)
