Haltech iC-7 OBD-II Color Display Dash HT-067012

€1.034,95

SKU: HT-067012
Description

Haltech iC-7 OBD-II Color Display Dash

Part Number: HT-067012

Suits: Preconfigured to connect directly (via CAN) to most late model vehicles (approx 2008-on) using the factory OBD-II port.

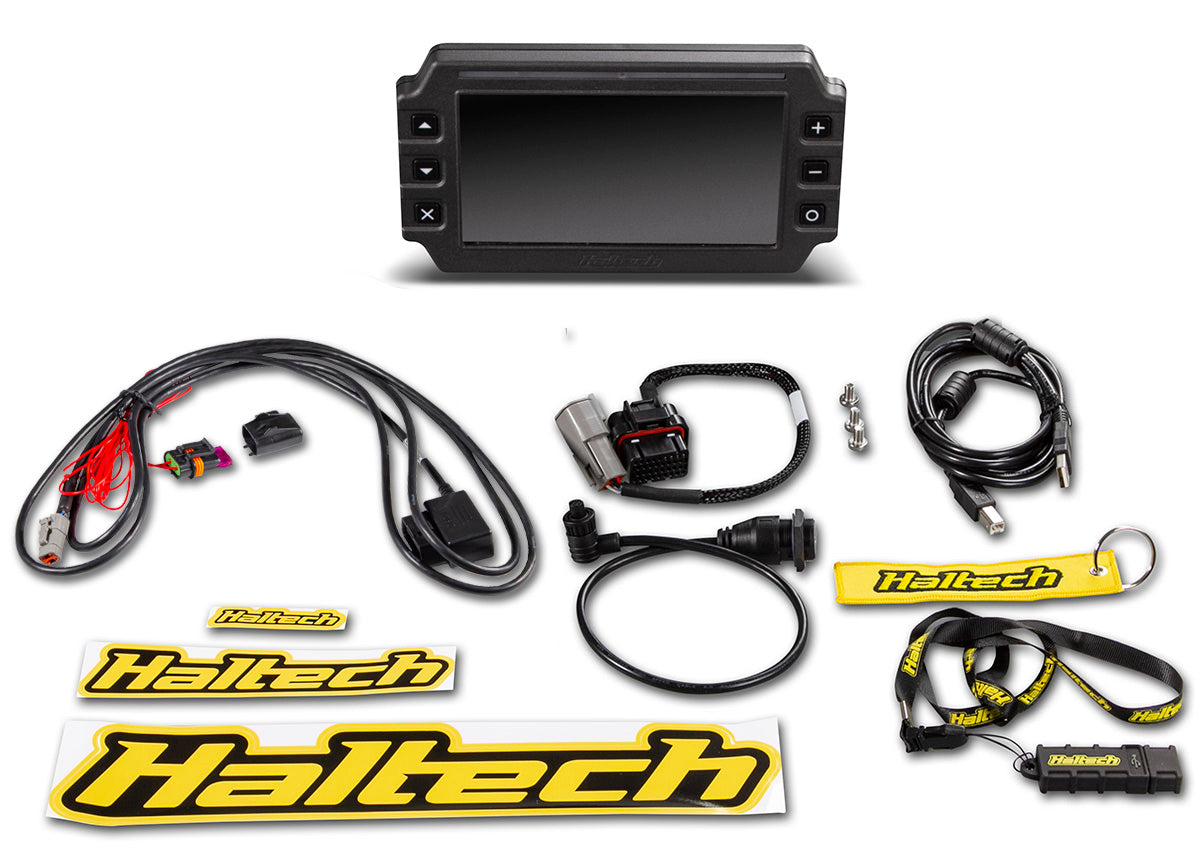

Includes: Haltech iC-7 Display Dash, 34 Pin main connector harness (includes spare pins for input wiring), OBD-II to DTM-4 CAN cable, USB to M5 right angle cable, USB Cable, Mounting Screws, USB flash drive with iC-7 Software, Quick Start Guide, Haltech stickers and a fabric keyring tag

DASH OVERVIEW

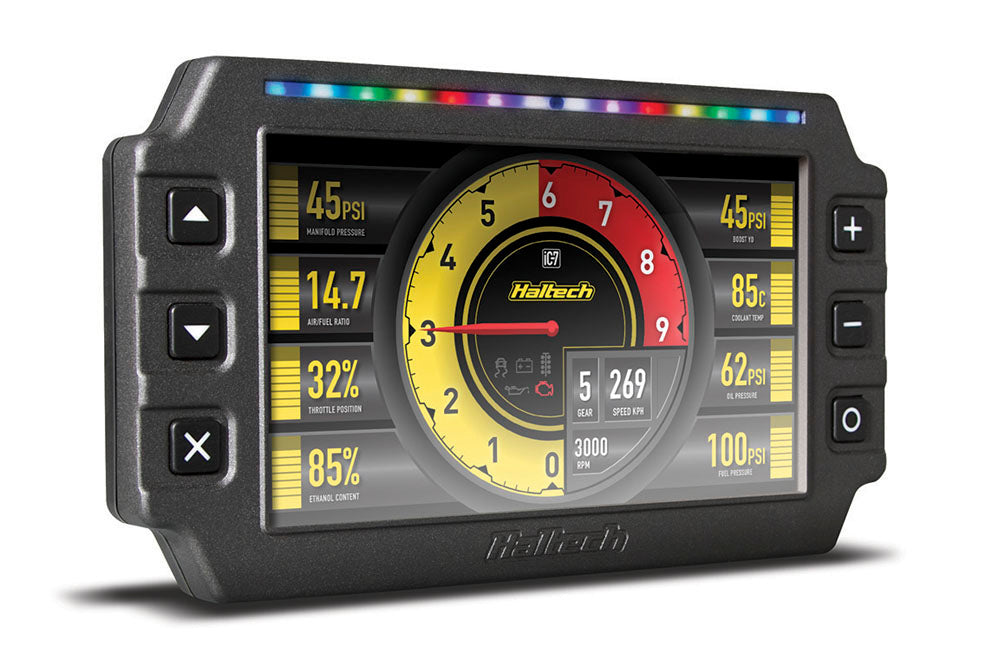

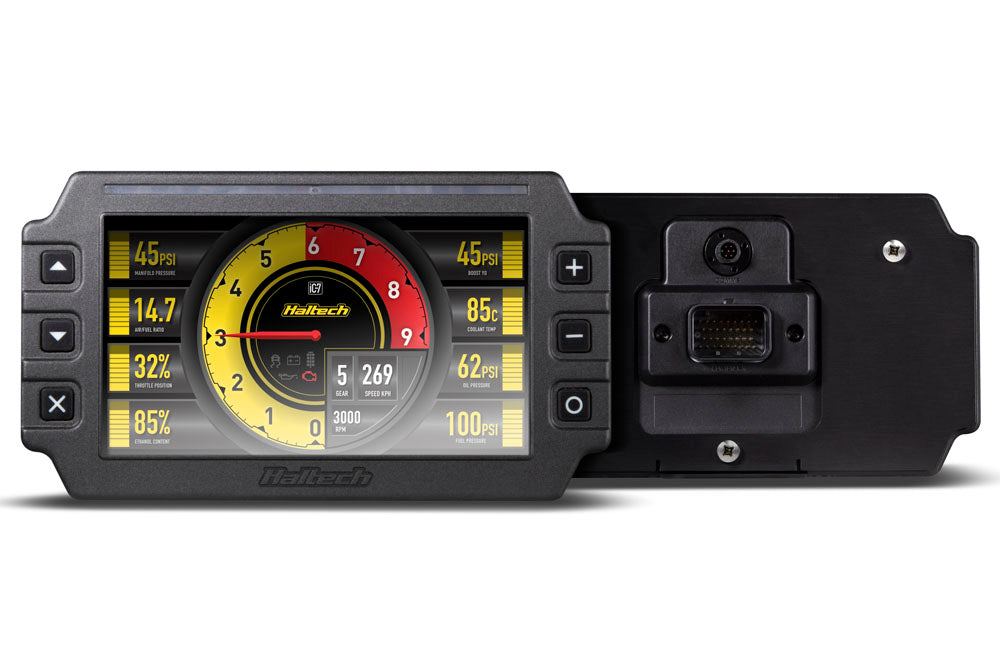

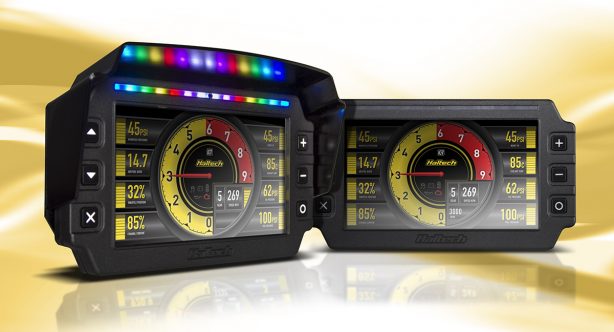

With a crisp, clear and full colour display, the all new Haltech iC-7 Display Dash lets you see things in a brand new way. Designed and manufactured in Australia with motoring enthusiasts in mind, the iC-7 offers market-leading features in a unique, state-of-the-art package. Featuring auto-dimming ambient light reactive brightness, user-programmable multi-colour shift light bar, the iC-7 connects directly to all current Haltech ECUs via a CAN network. The OBD-II iC-7 is preconfigured to connect directly (via CAN) to most late model vehicles (approx 2008-on) using the factory OBD-II port.
  • Ideal replacement for individual analogue gauge clusters.
  • Easy to install and configure.
  • User adjustable brightness control with automatic dimming.
  • User configurable channels, units and alarms.
  • 14 programmable, seven colour shift light LEDs.
  • Controlled via easily accessible, face-mounted control buttons.
  • Configuration via Haltech iC-7 software and USB cable.
