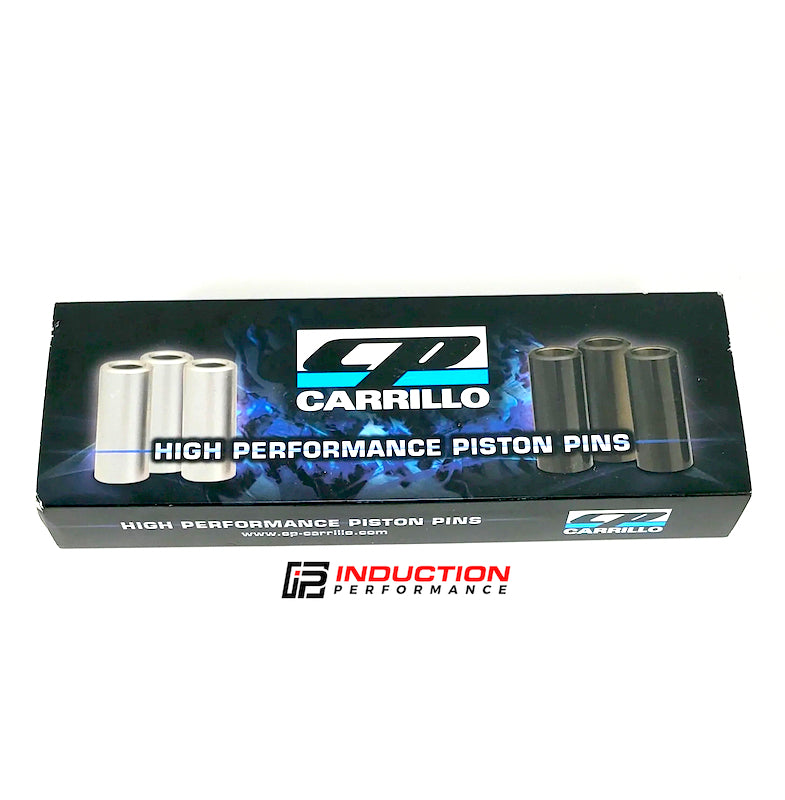

CP Piston .200" Wall 9310 Upgraded Wrist Pins - 866-2250-20CP3C

€33,95

SKU: 866-2250-20CP3C
Description

CP Piston .200" Wall 9310 Upgraded Wrist Pins

Part # 866-2250-20CP3C

*Price is Per Wrist Pin*

These high quality Pins are ISO 9000 and QS 9000 certified and statistical process control (SPC) is fully implemented throughout manufacturing.

  • 100% Rockwell tested
  • Case hardened (computerized gas process)
  • Gun drilled I.D.’s with 3 stages of I.D. honing
  • Weight tolerances +/- 1 gram
  • Precision ground ends with I.D. radius
  • Straight wall design to reduce pin galling on ends
  • Available with chamfered ends for Wire Locks
  • Cryogenically treated (subzero heat-treating process) for improved material strength and grain structure

DIAMETER: .866"
LENGTH: 2.250"
WALL THICKNESS: .200"
MATERIAL: 9310 Steel
TYPE: Chamfered
