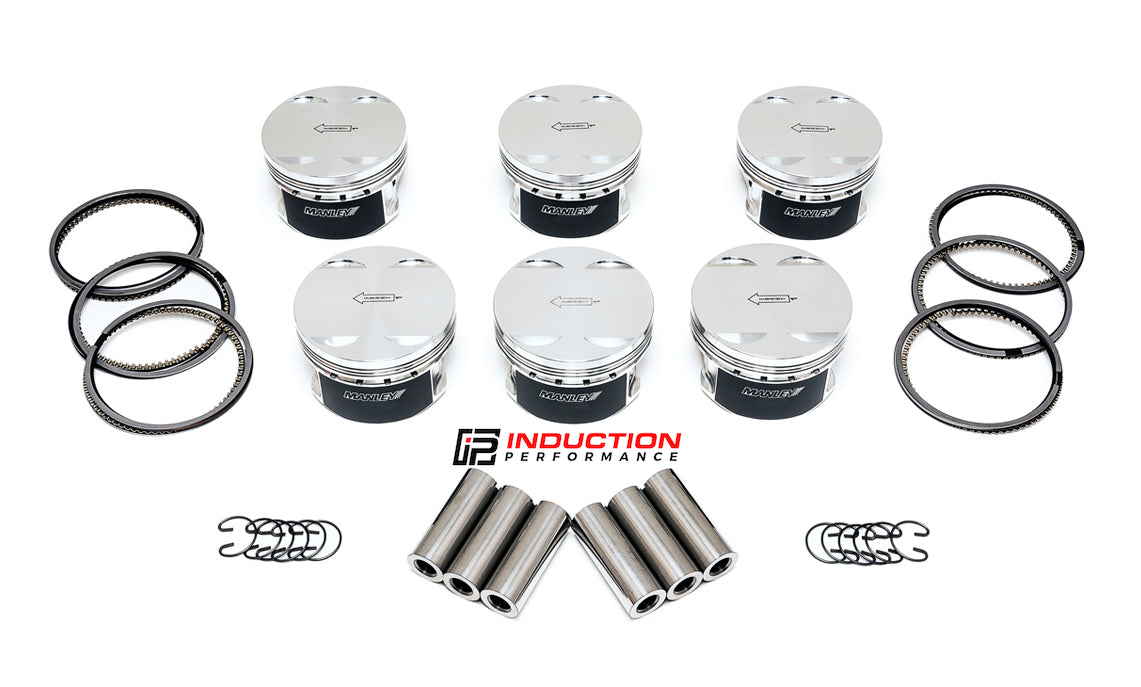

Manley Performance Turbo Tuff Pistons Set Toyota Supra 2JZ 2JZGTE - 86.5mm 9.0:1

Manley Performance Turbo Tuff Pistons Set Toyota Supra 2JZ 2JZGTE - 86.5mm 9.0:1

Part # 609205CE-6

Manley pistons are machined of high strength 2618 material. Each design is lightweight yet robust enough to deliver long service life. Offset wrist pin design is utilized for quiet start-ups. Perfect ring groove to skirt squareness is achieved through our unique "one fixturing" manufacturing method that assures maximum horsepower. All pistons come with moly coated skirts and will accommodate +1mm valve sizes. Round wire locks, premium chrome moly wrist pins, and premium steel top ring sets from Total Seal are included with every kit at no additional charge.

Features:

• 2618 alloy for maximum high temperature strength and fatigue resistance.
• "Contour forgings" provide the optimum balance between strength and weight with no grain-interrupting internal milling.
• Proprietary multi-step top ring groove machining process assures optimum control of the groove's size, geometry, flatness, and finish.
• All final turning is performed in one fixturing resulting in complete squareness of rings to the cylinder wall.
• Federal Form-Scan gauging validates ideal skirt indexing to pinhole and skirt-to-skirt polarity.
• Value - added features such as a pressure balance groove included in all series.
• Precise pinhole machining results in an exact compression distance as well as precise lock ring groove spacing, size, and concentricity.
• Manley Sport Compact Platinum series pistons come complete with pistons, rings, pins, and locks


Turbo Tuff Features:

• 2618 high strength material
• 2.250 x .250" wall 9310 alloy pin included P/N 42552
• Moly Coated Skirts
• Pressure balance groove
• Will accommodate +1mm valve sizes
• Vertical Gas Ports designed for high HP Race Engines
• Premium Steel top rings with Napier seconds and round wire locks included
• Recommended piston clearance .0035" measured .850" from the bottom of the oil ring

Specifications:
