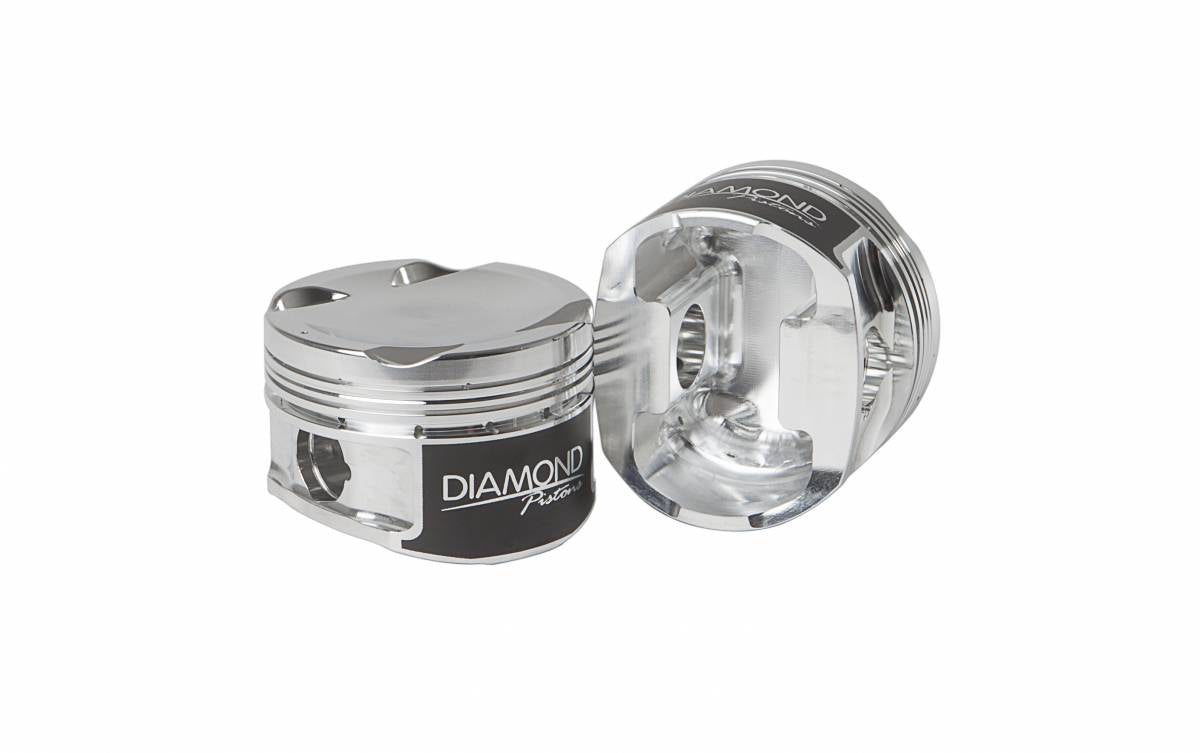

Diamond Pistons 82013-4 Mitsubishi EVO VI-IX 4G63 Series 1999-2007
Click to enlargeClick to enlarge

Diamond Pistons 82013-4 Mitsubishi EVO VI-IX 4G63 Series 1999-2007

$812.73

SKU: 82013-4
Description
Product Specifications Details
Item Number 82013-4
Engine Make Mitsubishi
Bore 85.5mm
Stroke 94.0mm
Rod 5.905
Comp Height 1.255
Weight call
Pin .866 x 2.250
CC -12.3cc
Comp Ratio 9.6
Cylinder Head Chamber CC 43
Ring Thickness 1.0mm x 1.2mm x 2.8mm
VP Intake Depth 0.200
VP Exhaust Depth 0.190
Cylinders 4
Barcode ID 686162222971
Class DIA-ASC-PSSK



Product Relations Details
Product Line Mitsubishi 4G63
Pins Included Y
Pin Part# G8662250180C
Rings Included Y
Ring Part# 09513366
Rails Included N
Support Rail Part# N/A
Locks Included Y
Lock Ring Part# 015113-8
Country of Origin USA



  • SKU: 82013-4
  • Item #: 82013-4
  • Brand: Diamond Racing - Pistons
  • Pin: .866 x 2.250
  • CC: -12.3cc
  • Compression Ratio: 9.6
  • Chamber CC: 43
  • Ring Thickness: 1.0mm x 1.2mm x 2.8mm
  • Engine Make: Mitsubishi
  • VP Intake Depth: 0.200
  • Bore: 85.5mm
  • VP Exhaust Depth: 0.190
  • Stroke: 94.0mm
  • Cylinder Qty: 4
  • Rod: 5.905
  • Comp Height: 1.255
  • Weight: call
